Drop-stitch PVC Technology Overview for Inflatable floating docks and water mats

Aug 11, 2026

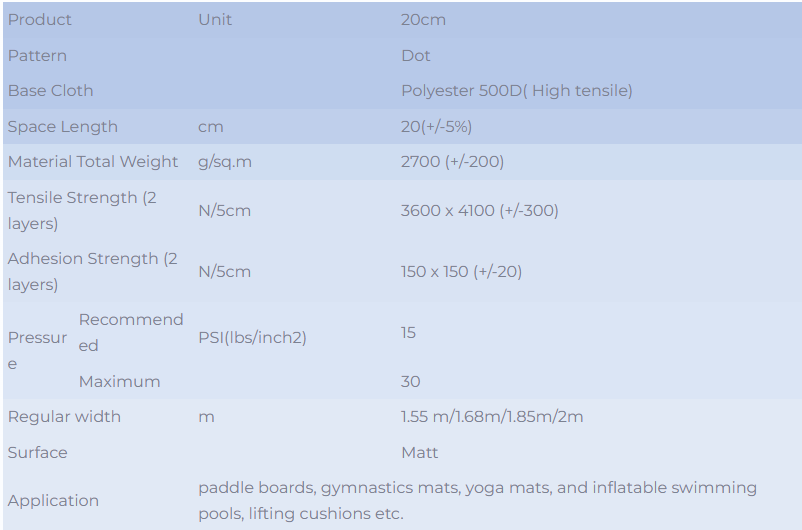

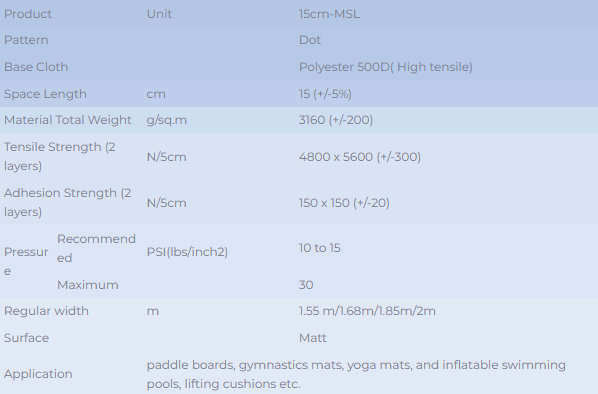

Drop Stitch technology.png20CM DROP STITCH.png15CM DROP STITCH.png

Drop-stitch PVC is a high-performance material technology that allows inflatable structures (like HIGHER floating docks and swim platforms) to maintain a completely flat, rock-hard surface when inflated to high pressures.

Unlike a standard inflatable (like a beach ball or air mattress), which becomes rounded when pressurized, drop-stitch material uses a complex internal architecture to maintain its shape and rigidity.

1. The Internal Structure

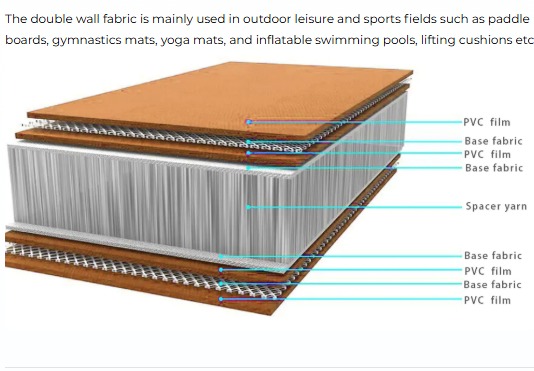

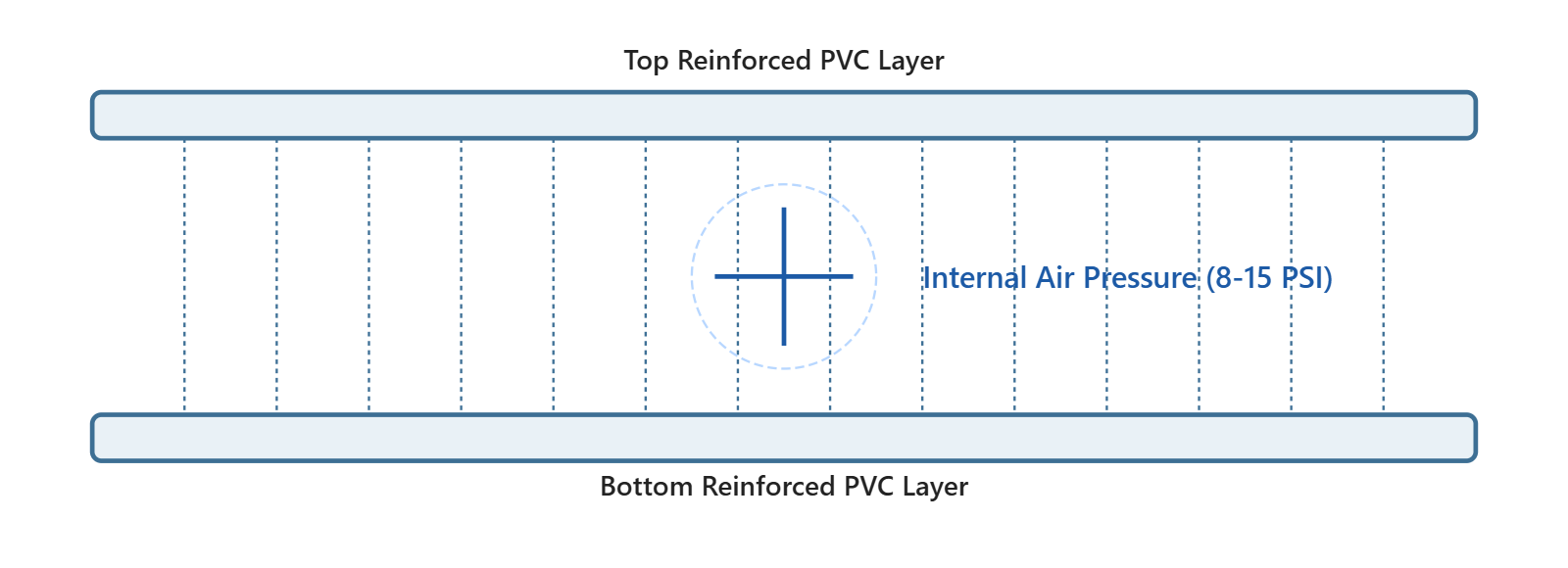

The core of drop-stitch technology consists of tens of thousands of fine polyester threads connecting two parallel layers of heavy-duty PVC.

  • When deflated: The layers sit flat, and the threads are loose, allowing for easy rolling and transport.
  • When inflated: The air pressure pulls the threads taut. Since threads are cut to the same length, they stop the PVC layers from 'ballooning', creating a perfectly flat and rigid surface.


2. Key Performance Indicators

For your HIGHER brand, these technical advantages are what define your "Commercial-Grade" positioning:

Metric

Standard Inflatable

Drop-Stitch PVC

Max Pressure

1 - 3 PSI

8 - 15+ PSI

Rigidity

Soft/Bouncy

Rock Hard

Surface

Rounded/Curved

Completely Flat







Durability

Light Duty

Multi-layer UV Resistant / Commercial Grade

3. Why it Matters for HIGHER Sports

In your product line, Drop-stitch PVC provides three critical e-commerce advantages:

  • Safety & Stability: Users can walk, stand, and place furniture on an inflatable dock without it buckling or flipping. This is essential for the "functional luxury" niche you target.
  • Landed Cost Efficiency: Because it is inflatable, it can be shipped in a compact box (reducing ocean freight costs), but once at the customer's dock, it performs like a permanent structure.
  • Longevity: For commercial yacht operators, the Heat-Activated Adhesive Bonding used on your drop-stitch products ensures the seams won't fail even under constant sun exposure and high pressure.

Would you like me to help you draft some marketing copy highlighting these "Space-Saving vs. Hard-Deck Performance" benefits for your next product page?

15CM MSL-2.png15cm MSL-1.png
